PROTUR – micro hydro

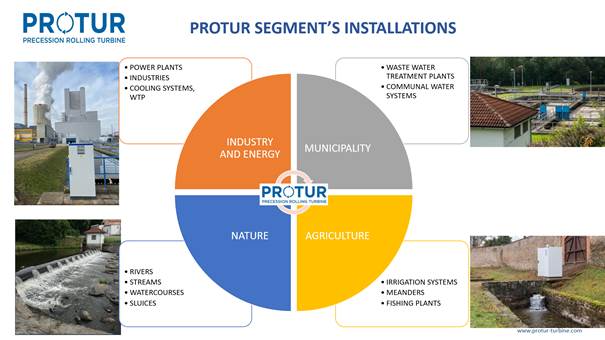

PROTUR is the name for a UNIQUE bladeless hydro turbine. The basic advantage of PROTUR system is its ability to work efficiently enough with low water flows on small gradients from 60 cm. A significant advantage is simplicity of the whole system. The turbine has many uses as an additional source for water management, but its main importance is seen in developing countries as a rural and at the same time the only source of energy, or a replacement for non-ecological diesel generators.



PROTUR MAIN TURBINE ADVANTAGES:

  • stable, continuous source 365/24/7
  • renewable and ecological source of el. energy
  • decentralized energy source
  • equipment with in fact no- maintenance requirements
  • operation of turbine independent of the supplier
  • fast installation
  • mobility
  • no risk of environmental pollution during turbine operation
  • on-line remote monitoring of the equipment

PROTUR PRODUCT CHARACTERISTIC

Precession rolling turbine is primarily intended to produce electricity with a voltage of 24V DC or 230V, 50Hz, but will conform to all national norms and standards.



PROTUR 300PROTUR 600
Working slope from 0.7 mWorking slope from 1 m
Minimum required water flow from 40 l/sMinimum required water flow from 80 – 100 l/s
Power 0.3 kWPower 0.6 kW
Daily production 7 kWhDaily production 14 kWh
Basic design + design with one or two tires for slopes up to a height of 2.2 mPossibility to install turbines in assemblies in one horizontal plane using common overflow inlets
Possibility to install turbines in assemblies in one horizontal plane using common overflow inletsQuick installation with minimal need for building modifications
Quick installation with minimal need for building modificationsHigh mobility
High mobility – the whole set weighs only 230 kg and for installation needs it can be dismantled into 4 basic building unitsHigh-quality surface treatment through hot-dip galvanizing, which guarantees long life
High-quality surface treatment through hot-dip galvanizing, which guarantees long lifeMinimum service and maintenance requirements for turbine operation
Minimum service and maintenance requirements for turbine operation

Contact:

Lukáš Chmel, MBA
Director of Energy projects division
Phone: +420 566 643 232
Mobile: +420 775 707 902
E-mail: lukas.chmel@zdas.cz
